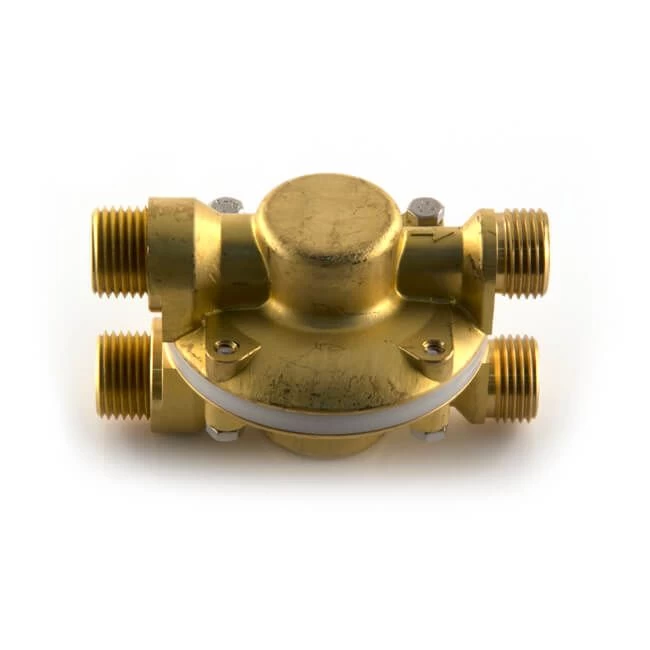

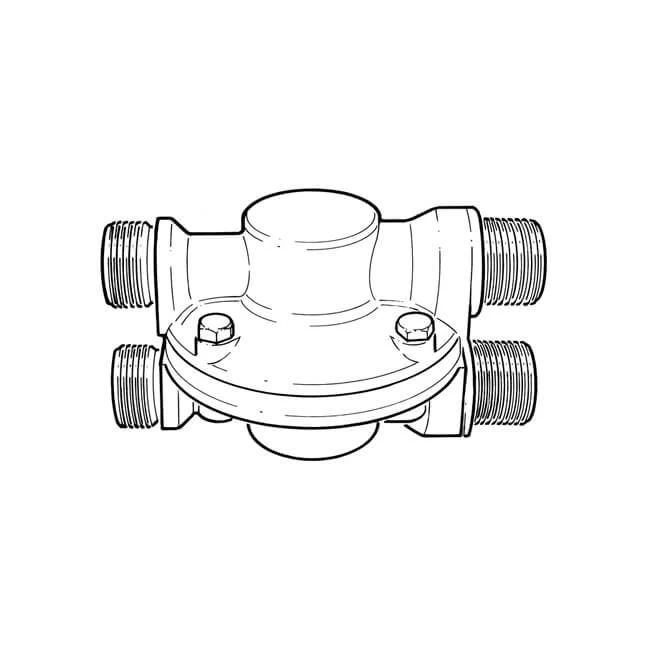

Water Pressure Equalising Valve

Equalises hot and cold water pressure by automatically adjusting the higher water pressure to balance with the lower. Easy to install and ideal for shower mixers, bath/shower mixers, single lever mixers, bidet mixers. The mixer must be designed to operate on equal pressure. The valve will equalize pressure on multi-point/combi or fully modulating gas boilers, gravity systems, mains pressure hot water cylinders, or any hot water system which provides constant temperature output.

DIMENSIONS :
L 100 x W 75 x D 60 mm.
Thread : 1/2″ BSP Male on all inlets and outlets.
Nuts and olives not supplied.
Working pressures :
minimum 20 kPa, 0.2 bar (3 p.s.i.)
maximum 1,000 kPa, 10 bar (150 p.s.i.)
