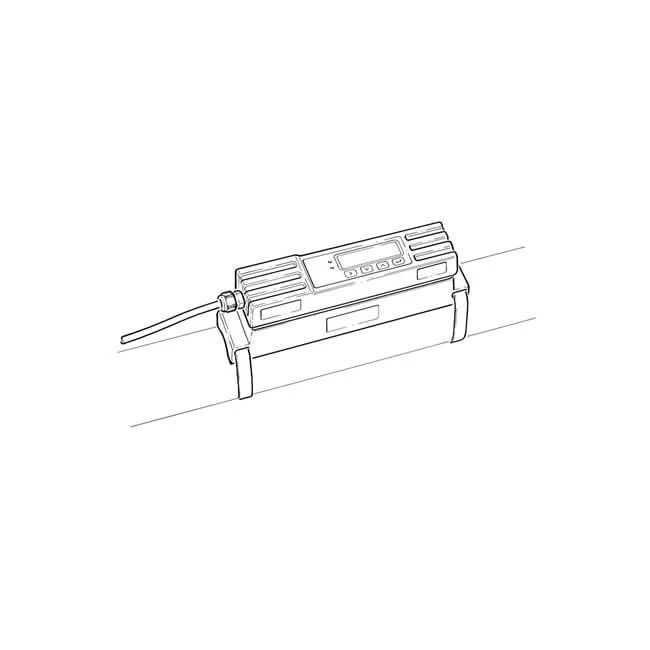

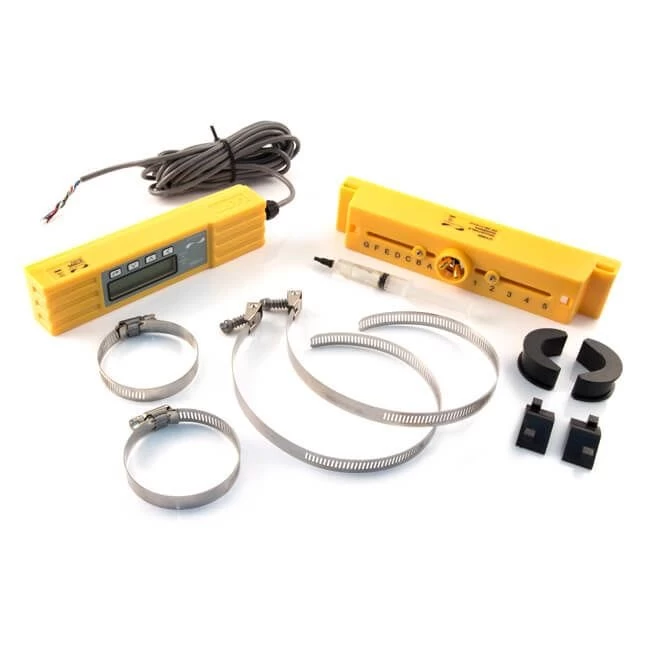

The Ultraflo U1000 is an Ultrasonic clamp-on meter for metering and flow measurement of hot, chilled, potable, process and ultrapure water. Features LCD with backlight and integral pulse and optional 4-20 mA outputs – aM&T and BEM compatible. Suitable for use on metal, plastic and copper pipes 25 to 115 mm o.d.
Input/output cable : 5 m x 6 core (for power in and data out).
Flow velocity range : 0.1 to 10 m/s.
Accuracy : ±1-3% of flow reading for > 0.3 m/s.
Water temp. range : 0 to 85°C.
External power supply : 12V-24V ±10% AC/DC at 7 W.
Enclosure rating : IP54.
Input/output cable : 5 m x 6 core (for power in and data out).
Flow velocity range : 0.1 to 10 m/s.
Accuracy : ±1-3% of flow reading for > 0.3 m/s.
Water temp. range : 0 to 85°C.
External power supply : 12V-24V ±10% AC/DC at 7 W.
Enclosure rating : IP54.
