Sale!

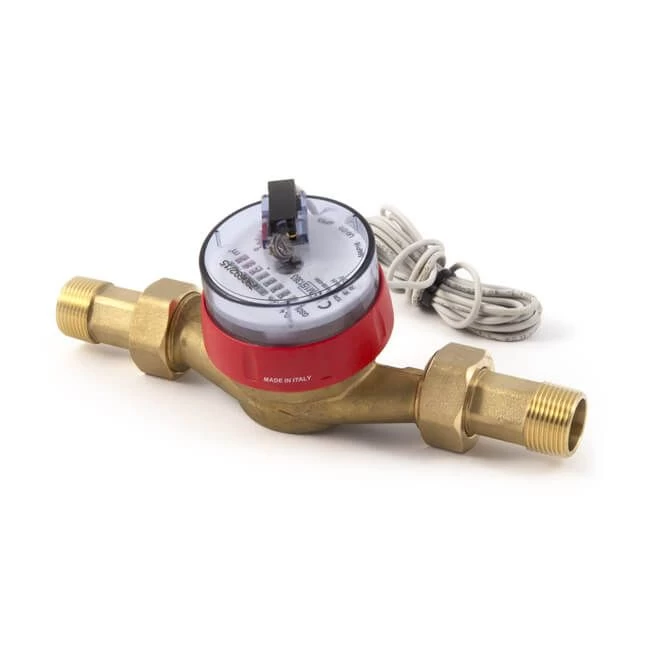

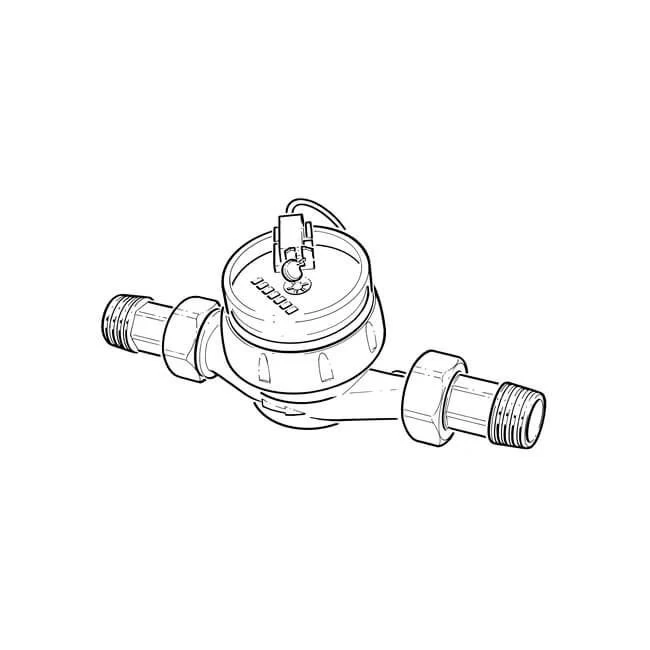

Pulsed Hot Water Meter – 20mm, 3/4″ BSP TM
Original price was: $48.31.$33.82Current price is: $33.82.
- Risk-Free Shopping with Returns
- 100% environmentally friendly material
- Quality You Can Trust
- Your satisfaction is 100% guaranteed.
20 mm nominal bore, 3/4″ BSP TM thread.
Pulsed water meter for use in the monitoring of consumption usually linked with an energy monitoring system.
Cast copper alloy meter body with multi jet and vane wheel operation. Approved according to MID standard up to R100-H, suitable for horizontal installation.
Meter has 1 pulse per 1 litre.
Max. 4 cubic metres per hour capacity.
WRAS approved.
Pulsed water meter for use in the monitoring of consumption usually linked with an energy monitoring system.
Cast copper alloy meter body with multi jet and vane wheel operation. Approved according to MID standard up to R100-H, suitable for horizontal installation.
Meter has 1 pulse per 1 litre.
Max. 4 cubic metres per hour capacity.
WRAS approved.
| Approved by | WRAS |
|---|---|
| Application | Monitoring hot water consumption. |
| Connection | BSP TM |
| Hot Water Meter Max Temp | 90° C |
| Material | Copper Alloy |
| Max. M3/H | 4 |
| Max. Operating Pressure | 16 bar |
| Measurement | Flow rates: Qmax. = 4 m³/hr.; Qmin = 40 litres/hr. |
| Nominal Bore | 20 mm |
| Pulsed Facility | 1 pulse per 1 litres |
| Size | 3/4" |
| Type | Hot Water Meter |
