Sale!

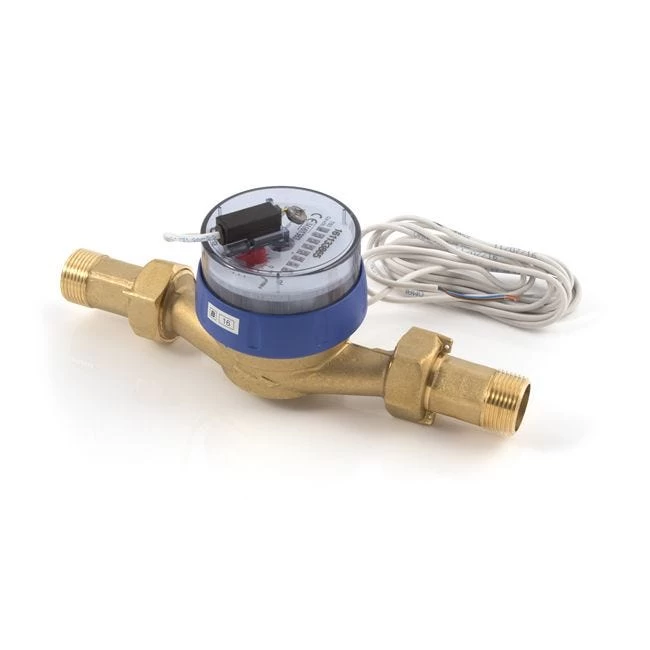

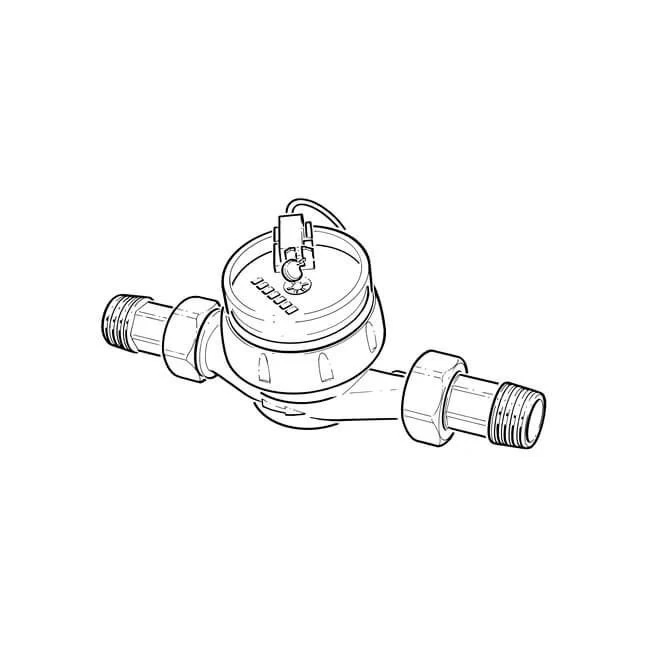

Pulsed Cold Water Meter – 15mm, 1/2″ BSP TM
Original price was: $39.15.$27.41Current price is: $27.41.
- Risk-Free Shopping with Returns
- 100% environmentally friendly material
- Quality You Can Trust
- Your satisfaction is 100% guaranteed.
15 mm nominal bore, 1/2″” BSP TM thread.
Pulsed cold water meter used in the monitoring of consumption, usually linked into energy information systems in, for example, factories, apartment and office blocks.
Cast copper alloy meter body with multi jet, vane wheel operation. Fitted with inductive interface and electronic pulse emitter module (interface is compatible with Mbus modules) with 1.5 m lead.
Approved according to MID standards up to R100-H and R50-VH.
Maximum recommended operating temperature is 50°C. Fitted with pulse output device. To be installed with a minimum of 5 pipe diameters of straight pipe before the inlet, and 3 after the outlet.
Suitable for horizontal and vertical installation.
Pulsed cold water meter used in the monitoring of consumption, usually linked into energy information systems in, for example, factories, apartment and office blocks.
Cast copper alloy meter body with multi jet, vane wheel operation. Fitted with inductive interface and electronic pulse emitter module (interface is compatible with Mbus modules) with 1.5 m lead.
Approved according to MID standards up to R100-H and R50-VH.
Maximum recommended operating temperature is 50°C. Fitted with pulse output device. To be installed with a minimum of 5 pipe diameters of straight pipe before the inlet, and 3 after the outlet.
Suitable for horizontal and vertical installation.
| Application | Monitoring cold water consumption. |
|---|---|
| Approved by | WRAS |
| Bore | 15 mm |
| Cold Water Meter Max Temp | 50° C |
| Connection | BSP TM |
| Material | Copper Alloy |
| Max. M3/H | 2.5 |
| Max. Operating Pressure | 16 bar |
| Measurement | 1 pulse per 1 litres |
| Nominal Bore | 15 mm |
| Pulsed Facility | Yes |
| Size | 1/2" |
| Type | Cold Water Meter |
