1/2″ BSP F connections to ISO 228-1.

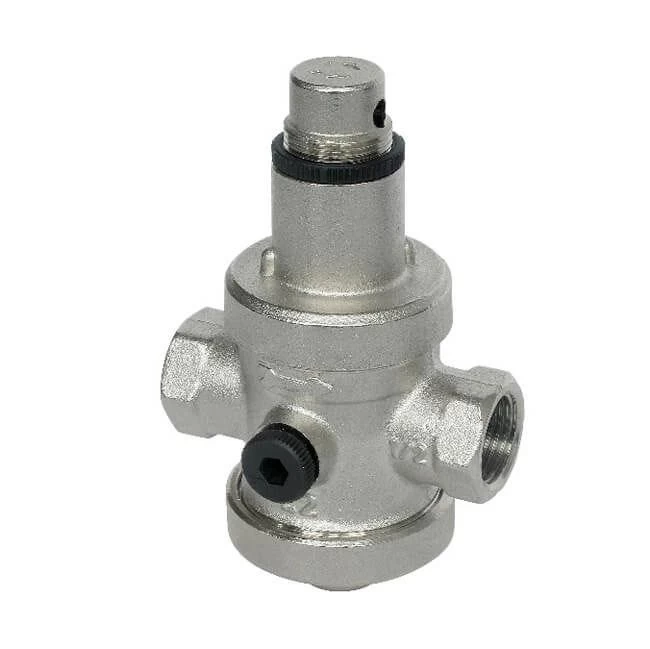

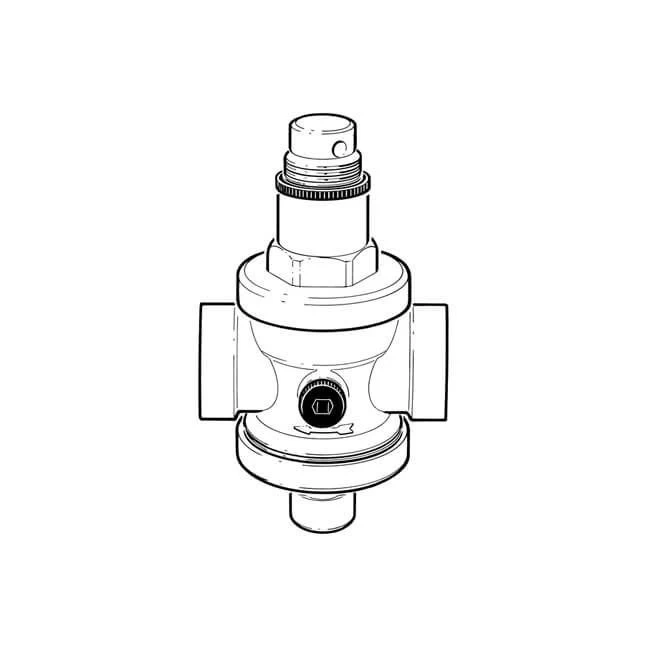

The PRV4 PT water pressure reducing valve is suitable for domestic and industrial installations.
The valve features a plated brass body with 1/4″ outlet pressure gauge connection on both sides, brass diaphragm, stainless steel seat, preset at 3 bar outlet pressure and the ability to work in any orientation (horizontal, vertical, up-side-down).
The PRV4 PT pressure reducing valve must be set when the system is closed.
Max. inlet pressure : 25 bar.
Max. operating temperature : 80°C.
Adjustable outlet pressure : 0.5 – 6 bar.
Reduction ratio : 5:1.
Dimensions : 77 mm face to face, H 118 x W 99 mm.
