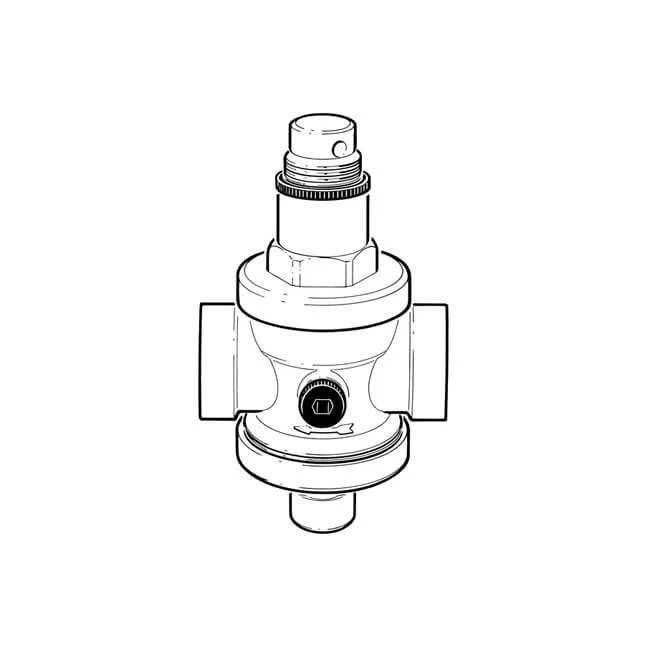

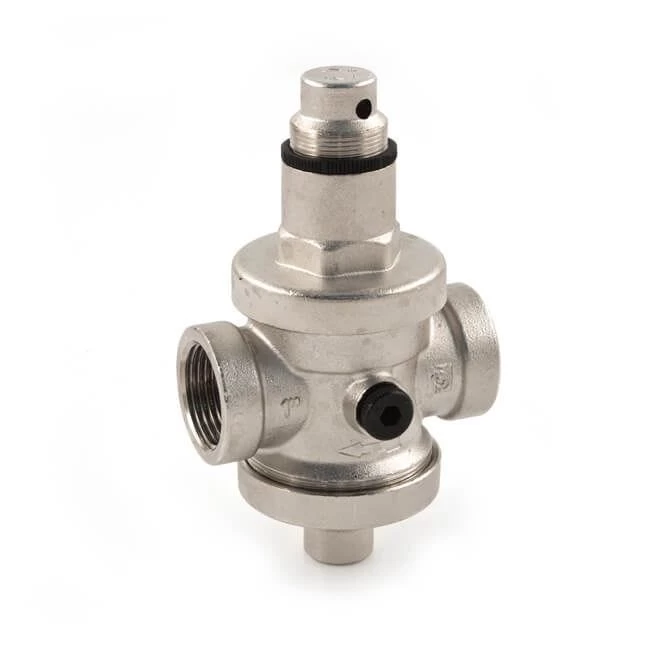

PRV4 PT Pressure Reducing Valve – 1″
Original price was: $89.26.$62.48Current price is: $62.48.
- Risk-Free Shopping with Returns
- 100% environmentally friendly material
- Quality You Can Trust
- Your satisfaction is 100% guaranteed.
1″ BSP F connections to ISO 228-1.
The PRV4 PT water pressure reducing valve is suitable for domestic and industrial installations.
The
valve features a plated brass body with 1/4″ outlet pressure gauge
connection on both sides, brass diaphragm, stainless steel seat, preset
at 3 bar outlet pressure and the ability to work in any orientation
(horizontal, vertical, up-side-down).
The PRV4 PT pressure reducing valve must be set when the system is closed.
Max. inlet pressure : 25 bar.
Max. operating temperature : 80°C.
Adjustable outlet pressure : 0.5 – 6 bar.
Reduction ratio : 5:1.
Dimensions : 91 mm face to face, H 152 x W 75 mm.
| Brand | Pegler |
|---|---|
| Connection | BSP F |
| Inlet Pressure | Max: 25 Bar |
| Material | Brass |
| Outlet Pressure | 0.5 – 6 bar |
| Size | 1" |
| Sub Brand | Prv 4 |
| Type | Pressure Reducing Valve |
