Kamstrup MULTICAL 403 Energy Meter - 2" Flanged PN25

Kamstrup MULTICAL 403 Energy Meter - 2" Flanged PN25 - Image 2

Kamstrup MULTICAL 403 Energy Meter – 2″ Flanged PN25

Original price was: $312.00.Current price is: $97.99.

SKU: YMVZL 2368740 Categories: Meter & Box, Plumbing

Risk-Free Shopping with Returns
100% environmentally friendly material
Quality You Can Trust
Your satisfaction is 100% guaranteed.

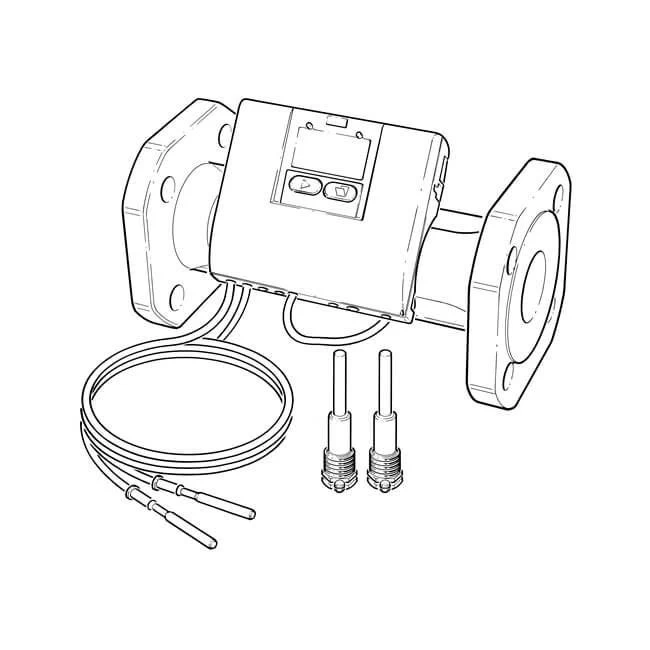

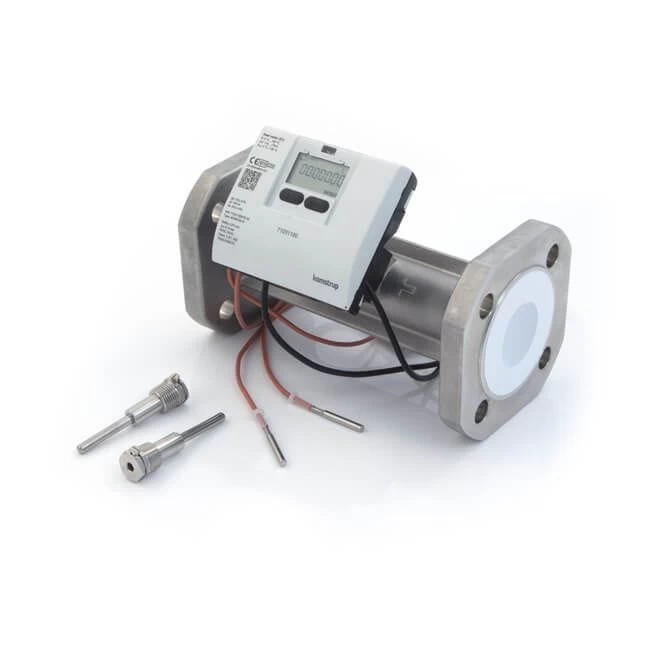

Multical® 403 is a compact ultrasonic energy meter that consists of calculator, flow sensor with 2″ flanged PN25 connections, 1.5 m signal cable and two 1.5 m return temperature sensors, for water-based heating systems with temperatures from 2 to 130°C. Powered by a D-cell lithium battery (up to 14 years life), the calculator’s two front keys adjust date and time or reset operating hour/info-event counters and can be used to display log data, including yearly or monthly logger. Can be fitted with optional communication modules for Wireless M-Bus + 2 pulse inputs, M-Bus + 2 pulse inputs and Data + 2 pulse outputs. For flange fitting kit use P/N 20984.

Application	Developed for measuring energy consumption in family and multiple occupancy housing, blocks of flats and small industry.
Brand	Kamstrup
Standards	EN 1434 Class A & MID E1, M1 & M2.
Connection	DN50, 2" Flanged, PN25
Dimensions	Calculator: H 110 x W 128 x D 40 mm
Flow Rate	Max: 30 m³/h
Nominal Bore	DN50
Nominal M3/H	15 m³/h
Optional Data Output	Communication modules for Wireless M-Bus + 2 pulse inputs, M-Bus + 2 pulse inputs and Data pulse + 2 pulse outputs.
Power Supply	D-cell Lithium Battery
Pressure Loss	0.14 bar @ Qp
Size	2"
Temperature Range	2° C to 130° C
Type	Heat Meter
