Kamstrup MULTICAL 403 Energy Meter – 1″ BSP M
Original price was: $319.00.$95.99Current price is: $95.99.
- Risk-Free Shopping with Returns
- 100% environmentally friendly material
- Quality You Can Trust
- Your satisfaction is 100% guaranteed.

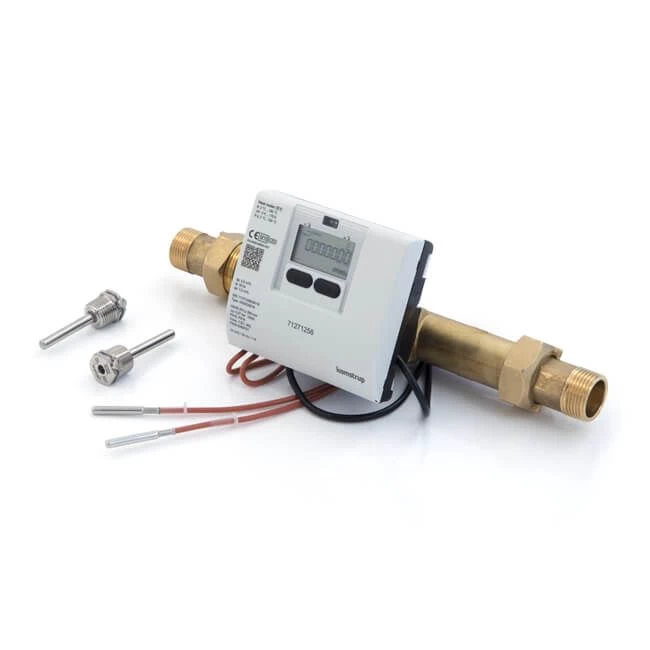

Multical® 403 is a compact ultrasonic energy meter that consists of calculator, flow sensor with BSP threaded unions, washers and nuts, 1.5 m signal cable and two 1.5 m return temperature sensors, for water-based heating systems with temperatures from 2 to 130°C. Powered by a D-cell lithium battery (up to 14 years life), the calculator’s two front keys adjust date and time or reset operating hour/info-event counters and can be used to display log data, including yearly or monthly logger. Can be fitted with optional communication modules for Wireless M-Bus + 2 pulse inputs, M-Bus + 2 pulse inputs and Data pulse + 2 pulse outputs.
| Application | Developed for measuring energy consumption in family and multiple occupancy housing, blocks of flats and small industry. |
|---|---|
| Brand | Kamstrup |
| Standards | EN 1434 Class A & MID E1, M1 & M2. |
| Connection | 1" BSP M |
| Dimensions | Calculator: H 110 x W 128 x D 40 mm |
| Flow Rate | Max: 7 mÂł/h |
| Nominal Bore | DN25 |
| Nominal M3/H | 3.5 mÂł/h |
| Optional Data Output | Communication modules for Wireless M-Bus + 2 pulse inputs, M-Bus + 2 pulse inputs and Data pulse + 2 pulse outputs. |
| Power Supply | D-cell Lithium Battery |
| Pressure Loss | 0.07 bar @ Qp |
| Size | 1" |
| Temperature Range | 2° C to 130° C |
| Type | Heat Meter |
