Itron CF Echo II Ultrasonic Heat Meter DN25 1″ BSP M
$302.00 Original price was: $302.00.$97.99Current price is: $97.99.
SKU: YMVZL 2096150 Categories: Meter & Box, Plumbing
- Risk-Free Shopping with Returns
- 100% environmentally friendly material
- Quality You Can Trust
- Your satisfaction is 100% guaranteed.

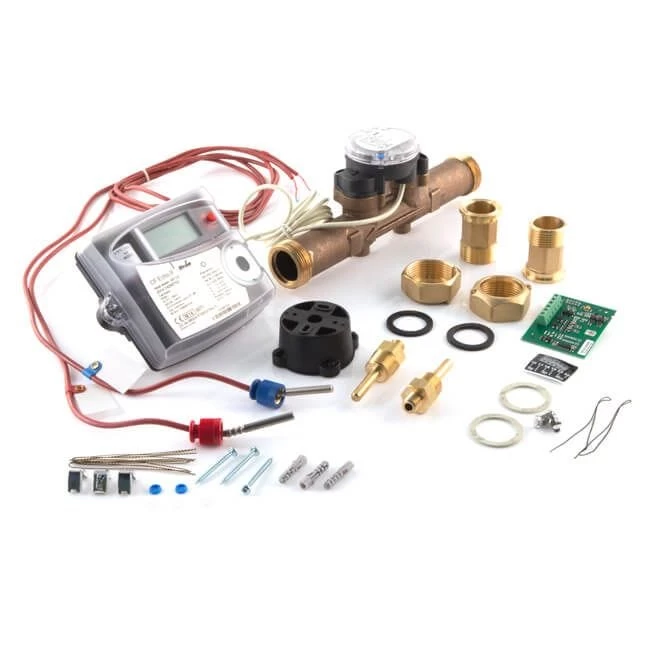

The CF Echo II is a compact Ultrasonic heat meter suitable for solar, (not suitable for glycol ) hot and cold water installations with electronic data processing, producing a dynamic range exceeding Class C. Flows can be measured from Qp 1.5 to 15 m3/h (DN15 to DN50) with stable accuracy. The meter kit consists of a lithium battery powered energy calculator with Mbus/pulse output, two temperature sensors with 1.7 m leads and an Ultrasonic water meter with BSP threaded unions, nuts and washers. Energy calculator can be meter or wall mounted within 1.3 m with signal cable supplied and its lithium battery has a 10 to 12 year life depending on usage. Meter to be installed with 5 pipe diameters of straight pipe before the inlet. Complies with RHI, EN 1434 Class 2, MID approved.
| Accessories | Calculator With Mbus/Pulse Output, Two Temperature Sensors With 1.7 M Leads and An Ultrasonic Water Meter With BSP Threaded Unions, Nuts and Washers |
|---|---|
| Max. Operating Pressure | Working: 16 bar |
| Type | Heat Meter |
| Size | DN25, 1" |
| Pressure Loss | 0.12 |
| Power Supply | Lithium Battery |
| Nominal M3/H | Flow Qp m3/h: 3.5 |
| Meter Dimensions | 130 mm x 110 mm |
| Max. Operating Temperature | 130°C |
| Max. M3/H | Flow Qs m3/h: 7 |
| Application | heat meter suitable for solar, (not suitable for glycol ) hot and cold water installations with electronic data processing, producing a dynamic range exceeding Class C |
| Material | Plastic |
| Length | 130 mm (Inc. Unions: 210 mm) |
| Flow Rate | 7 m³/h |
| Dimensions | Calculator: 119 mm x 149 mm x 55 mm |
| Connection | BSP M |
| Standards | RHI, EN 1434 Class 2, MID |
| Brand | Itron |
| Weight | 1.9 kg |
