Itron CF Echo II Ultrasonic Heat Meter DN20 3/4" BSP M

Itron CF Echo II Ultrasonic Heat Meter DN20 3/4" BSP M - Image 2

Itron CF Echo II Ultrasonic Heat Meter DN20 3/4″ BSP M

Original price was: $378.30.Current price is: $98.99.

SKU: YMVZL 2096087 Categories: Meter & Box, Plumbing

Risk-Free Shopping with Returns
100% environmentally friendly material
Quality You Can Trust
Your satisfaction is 100% guaranteed.

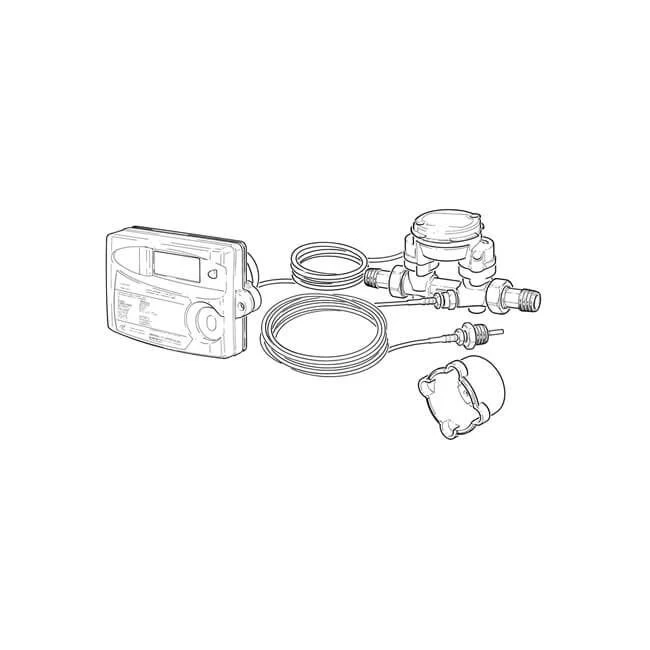

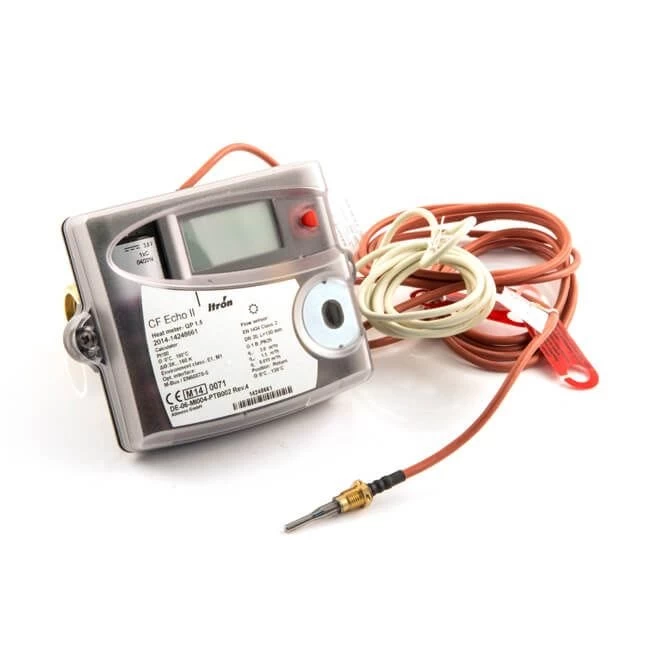

The CF Echo II is a compact Ultrasonic heat meter suitable for solar, (not suitable for glycol ) hot and cold water installations with electronic data processing, producing a dynamic range exceeding Class C. Flows can be measured from Qp 1.5 to 15 m3/h (DN15 to DN50) with stable accuracy. The meter kit consists of a lithium battery powered energy calculator with Mbus/pulse output, two temperature sensors with 1.7 m leads and an Ultrasonic water meter with BSP threaded unions, nuts and washers. Energy calculator can be meter or wall mounted within 1.3 m with signal cable supplied and its lithium battery has a 10 to 12 year life depending on usage. Meter to be installed with 5 pipe diameters of straight pipe before the inlet. Complies with RHI, EN 1434 Class 2, MID approved.

Brand	Itron
Max. Operating Pressure	Working: 16 bar
Type	Heat Meter
Size	DN20, 3/4"
Pressure Loss	0.21
Power Supply	Lithium Battery
Nominal M3/H	Flow Qp m3/h: 1.5
Meter Dimensions	130 mm x 90 mm
Max. Operating Temperature	130°C
Max. M3/H	Flow Qs m3/h: 3
Standards	RHI, EN 1434 Class 2, MID
Material	Plastic
Length	130 mm (Inc. Unions: 210 mm)
Flow Rate	3 m³/h
Dimensions	Calculator: 119 mm x 149 mm x 55 mm
Connection	BSP M
Application	heat meter suitable for solar, (not suitable for glycol ) hot and cold water installations with electronic data processing, producing a dynamic range exceeding Class C
Accessories	Calculator With Mbus/Pulse Output, Two Temperature Sensors With 1.7 M Leads and An Ultrasonic Water Meter With BSP Threaded Unions, Nuts and Washers
Weight	1.2 kg
