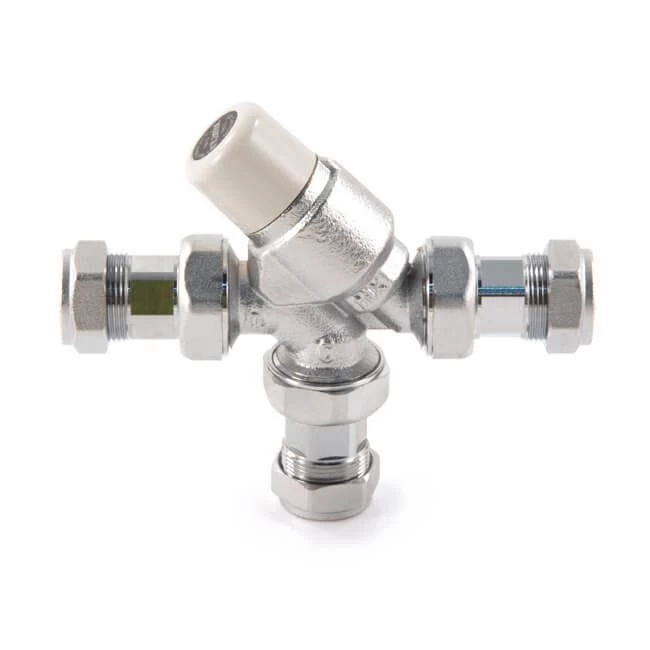

Inta Thermostatic Mixing Valve – 15mm

L Mix & Tail Pieces.

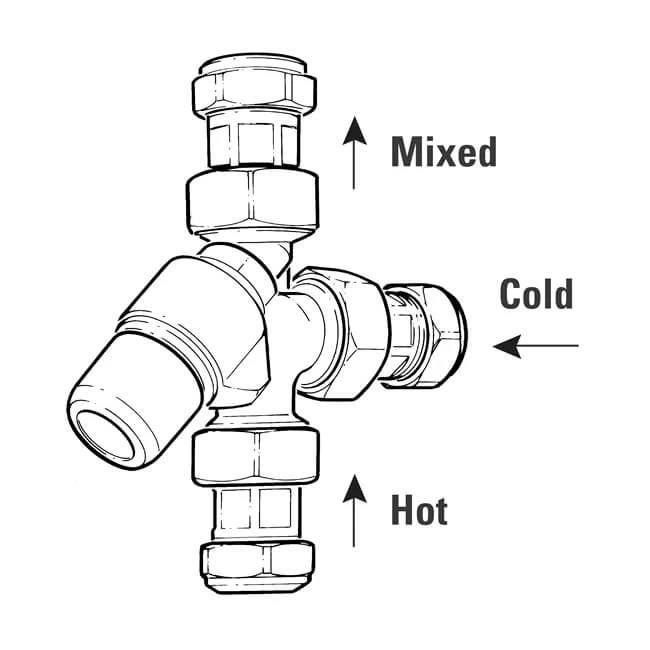

Deliver safe, blended hot water to taps, showers, bidets and other water outlets. Unlike T-pattern valves the hot and the cold water ports are perpendicular, which reduces the need for pipework modification and helps to save installation time – especially in retro fit applications.
Non-return valves supplied in hot and cold inlet fittings.

Temperature range: 30 to 50°C. (±2°C)
Max. inlet temperature: 85°C.
Max. working pressure: 10 bar. (static)
Minimum inlet pressure: 0.2 bar. (dynamic)
Flow rate at 1 bar differential: 25 litres/m
