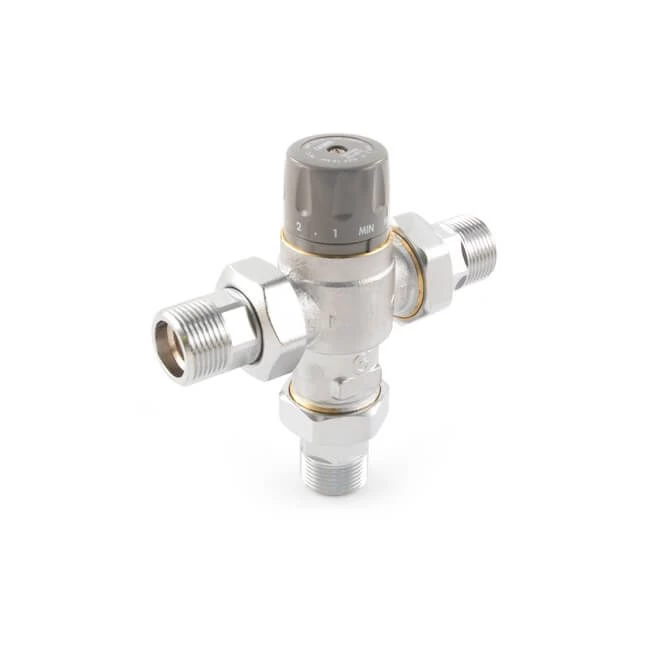

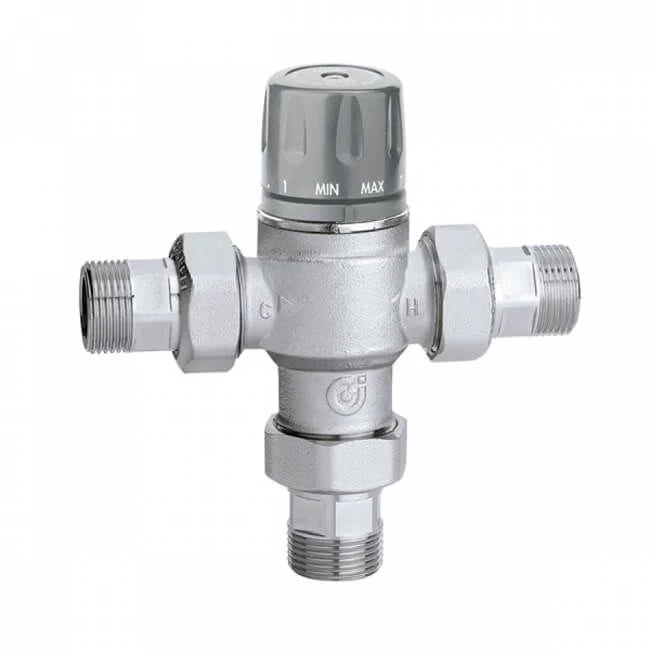

Caleffi Tempering Valve Safety Temperature Reduction - 1/2" BSP

Caleffi Tempering Valve Safety Temperature Reduction - 1/2" BSP - Image 2

Caleffi Tempering Valve Safety Temperature Reduction - 1/2" BSP - Image 3

Caleffi Tempering Valve Safety Temperature Reduction – 1/2″ BSP

Original price was: $85.71.Current price is: $60.00.

SKU: YMVZL 2075671 Categories: Brassware, Thermostatic Mixing Valve

Risk-Free Shopping with Returns
100% environmentally friendly material
Quality You Can Trust
Your satisfaction is 100% guaranteed.

Tempering Valve is a safety device designed to protect against scalding at outlets primarily used for personal hygiene. It is designed to control temperature in water mixing applications and safely reduce temperature to between 55 and 60°C. Can be used in systems where the water in the storage cylinder can reach temperatures significantly above 60°C, for example if heated by solar heating. Can be used with multiple outlets and frequently as part of a re-circulating domestic hot water system. Supplied with check valves and strainers.
Max. inlet pressure ratio: 2:1.
Min. temperature difference between hot water inlet and mixed outlet for best performance: 10°C.
Certified to BS EN 15092, Type 2 Adjustable temperature and WRAS approved.

Brand	Caleffi
Approved by	WRAS
Standards	BS EN 15092
Accuracy	±2°C
Adjustment Range	45 to 65°C
Connection	BSP
Flow Rate	Min.: 4 l/min
Inlet Temperature	Max: 90°C
Material	DZR Chrome Plated
Pressure	10 bar static, 5 bar dynamic
Size	1/2"
Type	Tempering Valve
WRAS Approved	Approval Number: 2205038
